Name: Mitee-Bite 80050 - Machinable Uniforce&#174; Clamps - 500 W/ Locking Plate 28.6&quot; - Min Qty 4 - USA
SKU: Mitee-Bite WBB736441
Availability: InStock

New

Mitee-Bite 80050 - Machinable Uniforce® Clamps - 500 W/ Locking Plate 28.6" - Min Qty 4 - USA

Original price was: $34.95.Current price is: $24.47.

SKU: Mitee-Bite WBB736441 Categories: Clamping & Positioning, Clamps & Components, Fixturing Clamps Tags: 1, 500 w/ Locking Plate, 80050, Black, Machinable Uniforce® Clamp, Machining, Made in USA, Mitee-Bite

Quality and Affordability Combined
Experience the difference quality makes.
Buy Quality, Live Better
Have the best deals

Machinable Uniforce® Clamps – 500 w/ Locking Plate 28.6″

The compact Mitee-Bite Uniforce Clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape or your workpiece. The specially designed steel wedge spreads the clamping force uniformly on both side of the 7075-T* slumuinum channel. A unique locking plate is provided to make the clamp rigid while machining the jaws to your specification without vibration.

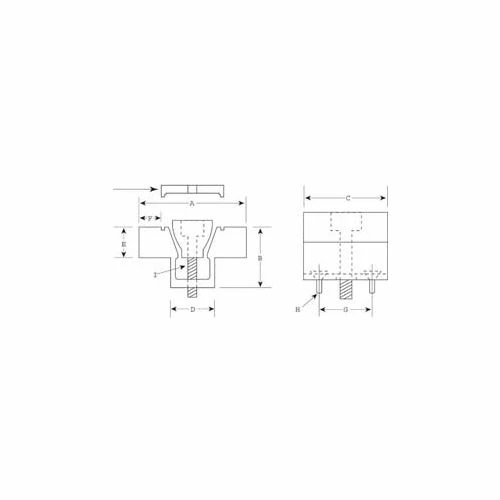

Dimension F	4.6 in
Dimension E	6.3 in
Manufacturers Part Number	80050
Description	Machinable Uniforce® Clamp
Package Quantity	1
Country of Origin	Made in USA
Color Family	Black
Type	500 w/ Locking Plate
Dimension D	10.67 in
Dimension C	15.7 in
Dimension I	M4 in
Dimension B	12.7 in
Dimension A	28.6 in
Max Torque	3.40 N.M lb-in
Holding Force	2225 N
Dimension H	M2 in
Brand	Mitee-Bite
