Original price was: $121.95.$92.99Current price is: $92.99.
- Quality and Affordability Combined
- Experience the difference quality makes.
- Buy Quality, Live Better
- Have the best deals

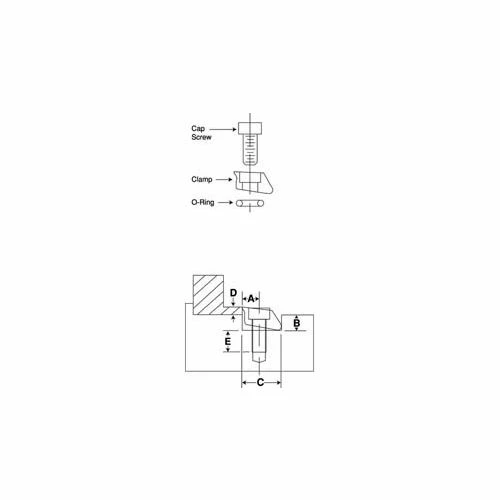

The PITBULL clamp uses a standard cap screw and an oil resistant O-ring. The PITBULL clamp is available in 5 sizes and several styles, a tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose and a brass version to help prevent marring the workpiece.
| Dimension C | 25.40 in |
|---|---|
| Holding Force | 26000 N |
| Max Torque | 40.6 N.M lb-in |
| Dimension A | 10.16 in |
| Dimension B | 11.43 in |
| Screw Size | M10 |
| Dimension D | 6.35 in |
| Dimension E | 18.03 in |
| Type | 10x25mm KE |
| Color Family | Black |
| Total Throw | 1.270 |
| Country of Origin | Made in USA |
| Description | Pitbull® Clamp |
| Package Quantity | 4 |
| Manufacturers Part Number | 56070 |
| Brand | Mitee-Bite |
Be the first to review “Mitee-Bite 56070 – Pitbull® Clamps – 10x25mm KE – Made In USA”
