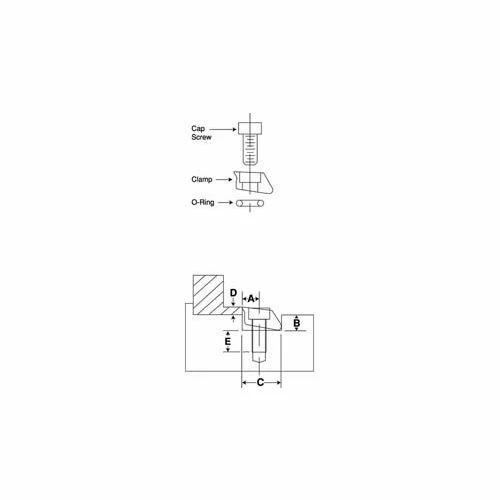

The PITBULL clamp uses a standard cap screw and an oil resistant O-ring. The PITBULL clamp is available in 5 sizes and several styles, a tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose and a brass version to help prevent marring the workpiece.
| Dimension C | 19.05 in |
|---|---|
| Holding Force | 4200 N |
| Max Torque | 5.6 N.M lb-in |
| Dimension A | 7.62 in |
| Dimension B | 7.11 in |
| Screw Size | M6 |
| Dimension D | 3.81 in |
| Dimension E | 11.18 in |
| Type | 6x16mm BBE |
| Color Family | Black |
| Total Throw | .610 |
| Country of Origin | Made in USA |
| Package Quantity | 6 |
| Description | Pitbull® Clamp |
| Manufacturers Part Number | 56065 |
| Brand | Mitee-Bite |
Be the first to review “Mitee-Bite 56065 – Pitbull® Clamps – 6x16mm BBE – Made In USA”
