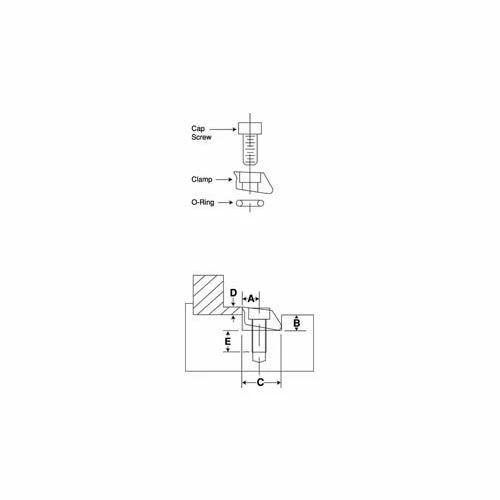

The PITBULL clamp uses a standard cap screw and an oil resistant O-ring. The PITBULL clamp is available in 5 sizes and several styles, a tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose and a brass version to help prevent marring the workpiece.
| Dimension C | 12.70 in |
|---|---|
| Holding Force | 6600 N |
| Max Torque | 5.6 N.M lb-in |
| Dimension A | 5.08 in |
| Dimension B | 4.75 in |
| Screw Size | M4 |
| Dimension D | 2.54 in |
| Dimension E | 9.90 in |
| Type | 4x12mm BE |
| Color Family | Black |
| Total Throw | .406 |
| Country of Origin | Made in USA |
| Description | Pitbull® Clamp |
| Package Quantity | 8 |
| Manufacturers Part Number | 56030 |
| Brand | Mitee-Bite |
