Name: Mitee-Bite 31350 - ID Xpansion&#174; Clamps - Size #6 1.56&quot; - Made In USA
SKU: Mitee-Bite WBB736282
Availability: InStock

New

Mitee-Bite 31350 - ID Xpansion® Clamps - Size #6 1.56" - Made In USA

Original price was: $119.95.Current price is: $83.97.

SKU: Mitee-Bite WBB736282 Categories: Clamping & Positioning, Clamps & Components, Fixturing Clamps Tags: 1, 31350, Black, ID Xpansion® Clamp, Machining, Made in USA, Mitee-Bite

Quality and Affordability Combined
Experience the difference quality makes.
Buy Quality, Live Better
Have the best deals

ID Xpansion® Clamps – Size #6 1.56″

Low profile clamping: Ideal for secondary operations on lathe parts, easily machined to size on either a lathe or mill, excellent for palletized setups, allows more parts per workcube or fixture plates, tighten with hex key or hydraulic pull cyclinders.

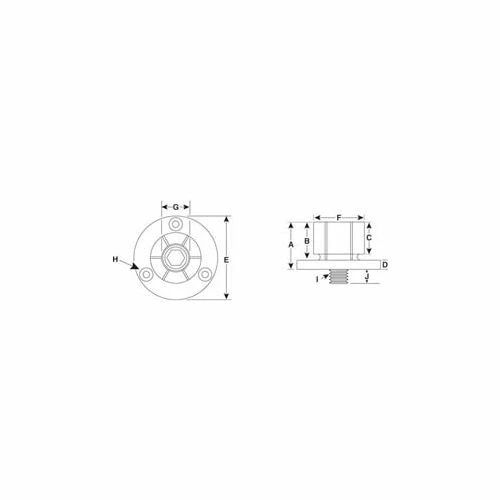

Dimension F	2.03 in
Dimension D	.31 in
Manufacturers Part Number	31350
Package Quantity	1
Description	ID Xpansion® Clamp
Country of Origin	Made in USA
Color Family	Black
Dimension E	2.972 in
Dimension I	5/8-11 in
Size	#6
Dimension B	1.25 in
Dimension A	1.56 in
Max Torque	224 FT/LBS lb-in
J Dimension	.79 in
Holding Force	10000 LBS
Dimension H	10-32 ON 2.515 BHC in
Dimension C	1.06 in
Brand	Mitee-Bite
