Low profile clamping: Ideal for secondary operations on lathe parts, easily machined to size on either a lathe or mill, excellent for palletized setups, allows more parts per workcube or fixture plates, tighten with hex key or hydraulic pull cyclinders.

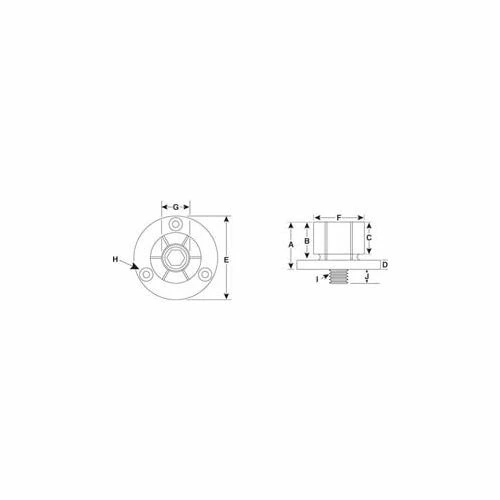

| Dimension F | 1.65 in |
|---|---|
| Dimension D | .31 in |
| Manufacturers Part Number | 31300 |
| Package Quantity | 1 |
| Description | ID Xpansion® Clamp |
| Country of Origin | Made in USA |
| Color Family | Black |
| Dimension E | 2.736 in |
| Dimension I | 5/8-11 in |
| Size | #5 |
| Dimension B | 1.25 in |
| Dimension A | 1.56 in |
| Max Torque | 224 FT/LBS lb-in |
| J Dimension | .79 in |
| Holding Force | 10000 LBS |
| Dimension H | 10-32 ON 2.200 BHC in |
| Dimension C | 1.06 in |
| Brand | Mitee-Bite |
