Name: Mitee-Bite 31250 - Id Xpansion&#174; Clamps - Size #4 1.25&quot; - Min Qty 2 - Made In USA
SKU: Mitee-Bite WBB736277
Availability: InStock

New

Mitee-Bite 31250 - Id Xpansion® Clamps - Size #4 1.25" - Min Qty 2 - Made In USA

Original price was: $89.95.Current price is: $62.97.

SKU: Mitee-Bite WBB736277 Categories: Clamping & Positioning, Clamps & Components, Fixturing Clamps Tags: 1, 31250, Black, ID Xpansion® Clamp, Machining, Made in USA, Mitee-Bite

Quality and Affordability Combined
Experience the difference quality makes.
Buy Quality, Live Better
Have the best deals

ID Xpansion® Clamps – Size #4 1.25″

Low profile clamping: Ideal for secondary operations on lathe parts, easily machined to size on either a lathe or mill, excellent for palletized setups, allows more parts per workcube or fixture plates, tighten with hex key or hydraulic pull cyclinders.

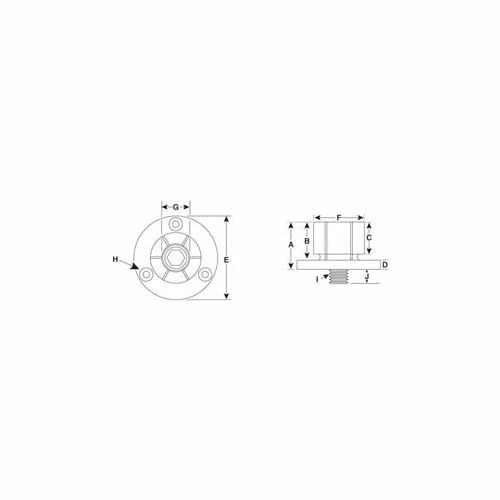

Dimension F	1.39 in
Dimension D	.25 in
Manufacturers Part Number	31250
Package Quantity	1
Description	ID Xpansion® Clamp
Country of Origin	Made in USA
Color Family	Black
Dimension E	2.205 in
Dimension I	1/2-13 in
Size	#4
Dimension B	1.00 in
Dimension A	1.25 in
Max Torque	120 FT/LBS lb-in
J Dimension	.71 in
Holding Force	5900 LBS
Dimension H	8-32 ON 1.790 BHC in
Dimension C	.81 in
Brand	Mitee-Bite
