Mitee-Bite 31000 - Id Xpansion® Clamps - Size #00 .42" - Min Qty 3 - Made In USA

Original price was: $59.95.Current price is: $41.97.

SKU: Mitee-Bite WBB736242 Categories: Clamping & Positioning, Clamps & Components, Fixturing Clamps Tags: 1, 31000, Black, ID Xpansion® Clamp, Machining, Made in USA, Mitee-Bite

Quality and Affordability Combined
Experience the difference quality makes.
Buy Quality, Live Better
Have the best deals

ID Xpansion® Clamps – Size #00 .42″

Low profile clamping: Ideal for secondary operations on lathe parts, easily machined to size on either a lathe or mill, excellent for palletized setups, allows more parts per workcube or fixture plates, tighten with hex key or hydraulic pull cyclinders.

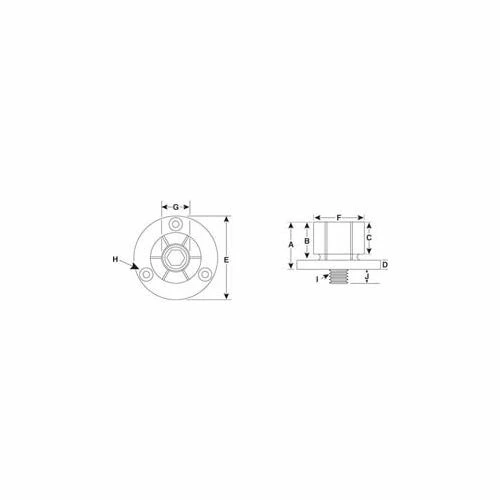

Dimension F	.29 in
Dimension D	.12 in
Manufacturers Part Number	31000
Package Quantity	1
Description	ID Xpansion® Clamp
Country of Origin	Made in USA
Color Family	Black
Dimension E	.787 in
Dimension I	2-56 in
Size	#00
Dimension B	.30 in
Dimension A	.42 in
Max Torque	.5 FT/LBS lb-in
J Dimension	.16 in
Holding Force	250 LBS
Dimension H	2-56 ON .540 BHC in
Dimension C	.24 in
Brand	Mitee-Bite
