This clamp supports the workpiece off the machine table for through milling and drilling. The hardened and ground clamps are designed for use on work cubes, as well as machined tables with tapped holes or T-slot configurations.

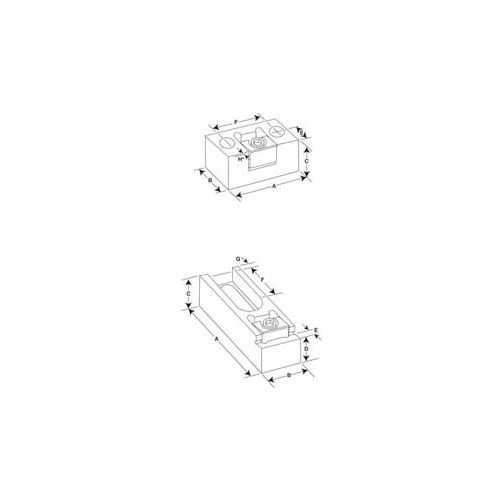

| Dimension F | 1.52 in |
|---|---|
| Dimension C | 1.61 in |
| Dimension H | .050 in |
| Holding Force | 6000 LBS |
| Max Torque | 30 FT/LBS lb-in |
| Dimension A | 4.20 in |
| Dimension B | 1.50 in |
| Dimension D | 1.3780 in |
| Dimension E | .36 in |
| Type | Large Slotted |
| Color Family | Black |
| Country of Origin | Made in USA |
| Description | Modular Pitbull® Clamp |
| Package Quantity | 1 |
| Manufacturers Part Number | 26250 |
| Brand | Mitee-Bite |
