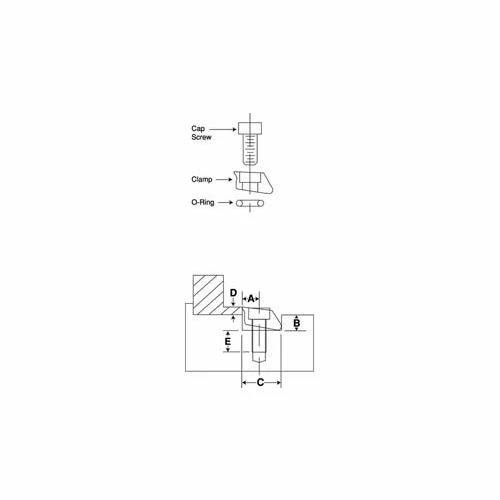

The PITBULL clamp uses a standard cap screw and an oil resistant O-ring. The PITBULL clamp is available in 5 sizes and several styles, a tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose and a brass version to help prevent marring the workpiece.
| Dimension C | .750 in |
|---|---|
| Holding Force | 3600 LBS |
| Max Torque | 14.50 FT/LBS lb-in |
| Dimension A | .300 in |
| Dimension B | .280 in |
| Screw Size | 1/4-20 |
| Dimension D | .150 in |
| Dimension E | .570 in |
| Type | Tool Steel BE |
| Color Family | Black |
| Total Throw | .0240 |
| Country of Origin | Made in USA |
| Package Quantity | 6 |
| Description | Pitbull® Clamp |
| Manufacturers Part Number | 26060 |
| Brand | Mitee-Bite |
Be the first to review “Mitee-Bite 26060 – Pitbull® Clamps – Tool Steel Be 1/4-20 Screw Size – Min Qty 2 – Made In USA”
