Name: Mitee-Bite 26030 - Pitbull&#174; Clamps - Tool Steel BE 8-32 Screw Size - Made In USA
SKU: Mitee-Bite WBB736294
Availability: InStock

New

Mitee-Bite 26030 - Pitbull® Clamps - Tool Steel BE 8-32 Screw Size - Made In USA

Original price was: $115.95.Current price is: $81.17.

SKU: Mitee-Bite WBB736294 Categories: Clamping & Positioning, Clamps & Components, Fixturing Clamps Tags: .0160, 8, Black, Machining, Made in USA, Mitee-Bite, Pitbull® Clamp, Tool Steel BE

Quality and Affordability Combined
Experience the difference quality makes.
Buy Quality, Live Better
Have the best deals

Pitbull® Clamps – Tool Steel BE 8-32 Screw Size

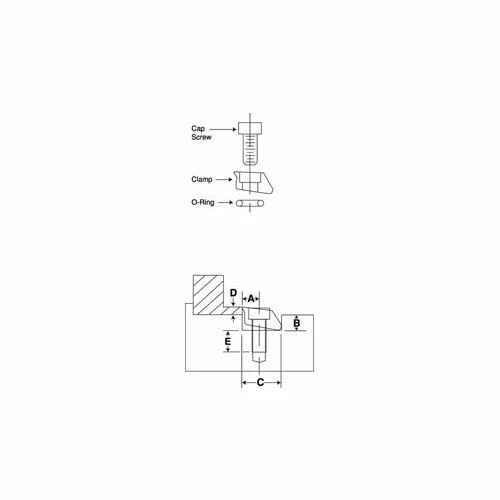

The PITBULL clamp uses a standard cap screw and an oil resistant O-ring. The PITBULL clamp is available in 5 sizes and several styles, a tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose and a brass version to help prevent marring the workpiece.

Dimension C	.500 in
Holding Force	1500 LBS
Max Torque	3.70 FT/LBS lb-in
Dimension A	.200 in
Dimension B	.187 in
Screw Size	8-32
Dimension D	.100 in
Dimension E	.390 in
Type	Tool Steel BE
Color Family	Black
Total Throw	.0160
Country of Origin	Made in USA
Description	Pitbull® Clamp
Package Quantity	8
Manufacturers Part Number	26030
Brand	Mitee-Bite
