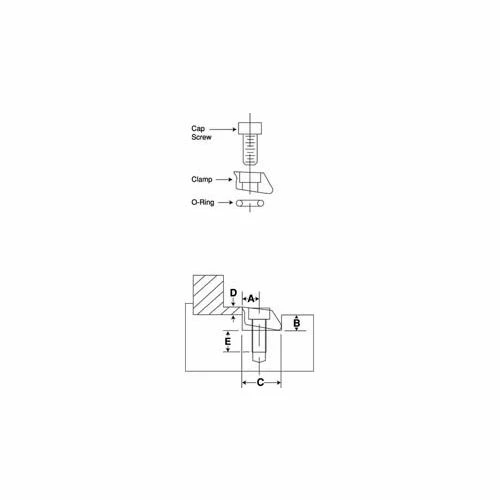

The PITBULL clamp uses a standard cap screw and an oil resistant O-ring. The PITBULL clamp is available in 5 sizes and several styles, a tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose and a brass version to help prevent marring the workpiece.
| Dimension C | .375 in |
|---|---|
| Holding Force | 650 LBS |
| Max Torque | 1.30 FT/LBS lb-in |
| Dimension A | .150 in |
| Dimension B | .140 in |
| Screw Size | 4-40 |
| Dimension D | .075 in |
| Dimension E | .260 in |
| Type | Tool Steel KE |
| Color Family | Black |
| Total Throw | .0075 |
| Country of Origin | Made in USA |
| Description | Pitbull® Clamp |
| Package Quantity | 8 |
| Manufacturers Part Number | 26000 |
| Brand | Mitee-Bite |
