Machinable Fixture Clamps – 3/8-16
Parts can be held directly to the fixture plate surface or elevated for through drilling.

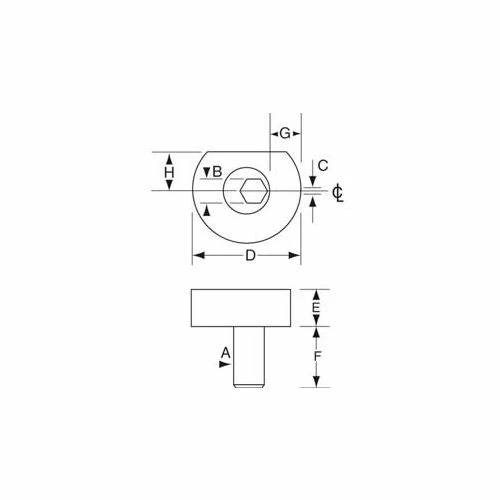

| Dimension F | .710 in |
|---|---|
| Size | 3/8-16 |
| Dimension C | .050 in |
| Dimension H | .400 in |
| Holding Force | 2000 LBS |
| Max Torque | 20.8 FT/LBS lb-in |
| Dimension A | 3/8-16 in |
| Dimension B | 3/16 in |
| Dimension D | 1.230 in |
| Dimension E | .350 in |
| Color Family | Black |
| Country of Origin | Made in USA |
| Description | Machinable Fixture Clamp |
| Package Quantity | 4 |
| Manufacturers Part Number | 10506 |
| Brand | Mitee-Bite |
