$1.32 Original price was: $1.32.$0.92Current price is: $0.92.
SKU: J.W. Winco WBB2680110 Categories: Clamp Components, Clamping & Positioning, Clamps & Components Tags: 1, Import, J.W. Winco, Machining, Roll-In T-Slot Nut, Silver, Steel, Zinc Plated
- Quality and Affordability Combined
- Experience the difference quality makes.
- Buy Quality, Live Better
- Have the best deals

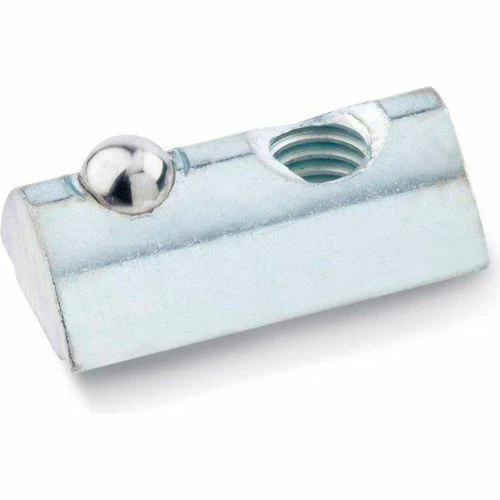

GN 506 T-slot nuts can be rolled into position, they can be inserted at any point along the slot. The guide step positions the nut parallel and central within the slot, which makes it easier to move the nut and prevents from twisting during tightening. The spring loaded ball prevents an unwanted movement of the nut in the slot which is highly desirable on a bed with the T-slots in a vertical position.
| Nut Width | 1/2" |
|---|---|
| Thread Size | M8 in |
| Table Slot | 5/16" |
| Ball Diameter | 3/16 in |
| Nut Height | 5/16" |
| Unit of Measurement | Inch (Imperial) |
| Length | 7/8 in |
| Type | Roll-In T-Slot Nut |
| Color Family | Silver |
| Country of Origin | Import |
| Finish | Zinc Plated |
| Material | Steel |
| Package Quantity | 1 |
| Manufacturers Part Number | 506-8-M8 |
| Brand | J.W. Winco |
Be the first to review “J.W. Winco GN 506 Roll-In T-Slot Nuts, Steel, for Aluminum Profiles, with Guide Step, M8, 5/16"” Cancel reply
