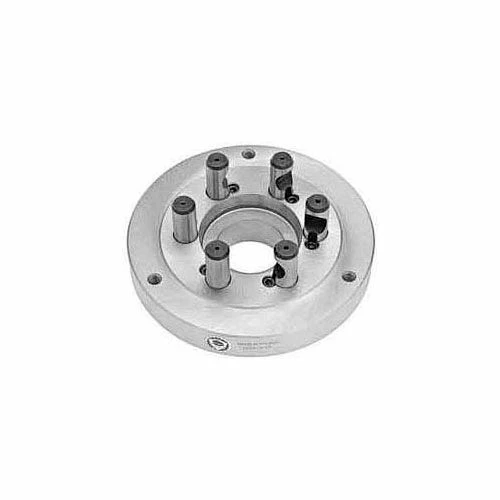

Fully-Machined Type D Steel Adapter for Set-Tru, 8in
- For SET-TRU chucks
- For D1 spindle
- D1-6 Mounting
| Dimension F | 5.25" |
|---|---|
| Dimension E | 2.165" |
| Manufacturers Part Number | 7-875-086 |
| Description | Lathe Chuck Back Plate |
| Country of Origin | Import |
| Style | Camlock D1-6 |
| Chuck Mounting Holes G | M10 x 1.5 |
| Mount | D1-6 |
| Number of Studs | 6 |
| Type | Camlock D for SET-TRU |
| Dimension D | 4.1878" |
| Chuck Diameter | 8" |
| Dimension B | 2.01" |
| Dimension A | 7.87" |
| Stud Diameter | 7/8 in |
| Dimension H | 6.929" |
| Chuck Size | 8 in |
| Dimension C | 4.33 in |
| Weight | 17.64 lbs |
| Dimension B1 | 0.67" |
| Brand | Bison |
