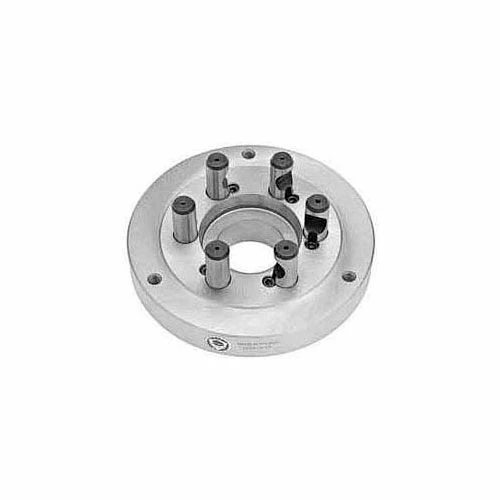

Fully-Machined Type D Steel Adapter for Set-Tru, 5in
- For SET-TRU chucks
- For D1 spindle
- D1-6 Mounting
| Dimension F | 5.25" |
|---|---|
| Dimension E | 1.378" |
| Manufacturers Part Number | 7-875-056 |
| Description | Lathe Chuck Back Plate |
| Country of Origin | Import |
| Style | Camlock D1-6 |
| Chuck Mounting Holes G | M8 x 1.25 |
| Mount | D1-6 |
| Number of Studs | 6 |
| Type | Adapters for 5C SET-TRU Collet Chucks |
| Dimension D | 4.1878" |
| Chuck Diameter | 5" |
| Dimension B | 1.89" |
| Dimension A | 7.12" |
| Stud Diameter | 7/8 in |
| Dimension H | 4.252" |
| Chuck Size | 5 in |
| Dimension C | 2.164 in |
| Weight | 13.06 lbs |
| Dimension B1 | 0.55" |
| Brand | Bison |
