New
Original price was: $311.95.$94.99Current price is: $94.99.
- Quality and Affordability Combined
- Experience the difference quality makes.
- Buy Quality, Live Better
- Have the best deals

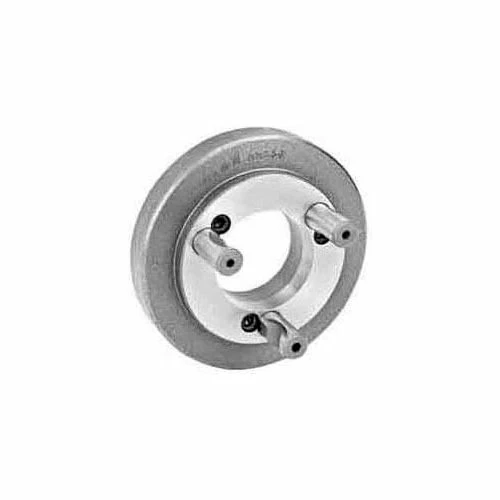

Semi-Machined Type D Adapter, 10in
- For plain back chucks
- For D1 spindle
- D1-6 Mounting
| Chuck Diameter | 10" |
|---|---|
| Number of Studs | 6 |
| Manufacturers Part Number | 7-878-1060 |
| Description | Lathe Chuck Back Plate |
| Machined | Semi |
| Country of Origin | Import |
| Style | Camlock D1-6 |
| Mount | D1-6 |
| Type | Semi-Machined Type D1 |
| Weight | 35 lbs |
| Dimension D | 5.25" |
| Hole Diameter C | 4.06" |
| Dimension G | 4.19 in |
| Flange Thickness B | 1.93" |
| Dimension A | 9.96" |
| Stud Diameter | 7/8 in |
| Chuck Size | 10 in |
| Brand | Bison |
Be the first to review “Bison Back Plate, D Taper for 10" Chucks, D1-6 Semi-Finished”
