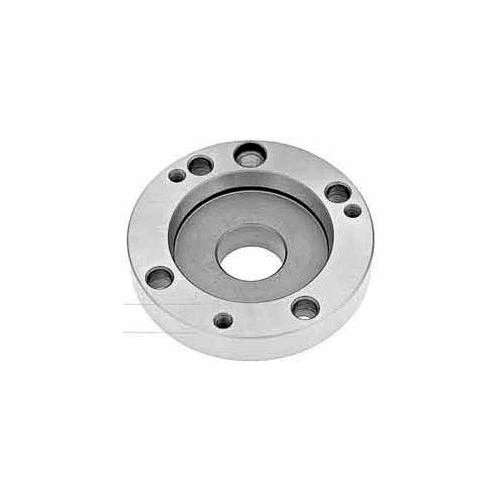

Back plate, A Taper for SET-TRUBison Chucks, 5″ A1/A2-4
| Dimension F | 3.252" |
|---|---|
| Type | Adapters for 5C SET-TRU Collet Chucks |
| Manufacturers Part Number | 7-874-054 |
| Description | Lathe Chuck Back Plate |
| Country of Origin | Import |
| Style | Taper A1/A2-4 |
| Number of Bolts | 4 |
| Spindle Mounting Bolts N | 7/16 – 14 |
| Chuck Mounting Holes G | M8 x 1.25 |
| Mount | A4 |
| Dimension E | 1.378" |
| Chuck Diameter | 5" |
| Dimension D | 2.5" |
| Dimension B | 1.42" |
| Dimension A | 4.92" |
| Dimension H | 4.252" |
| Chuck Size | 5 in |
| Dimension C | 2.164 in |
| Dimension K | 0.87" |
| Weight | 4.8 lbs |
| Dimension B1 | 0.55" |
| Brand | Bison |
Be the first to review “Bison Back Plate, A Taper for SET-TRU Chucks, 5" A1/A2-4”
