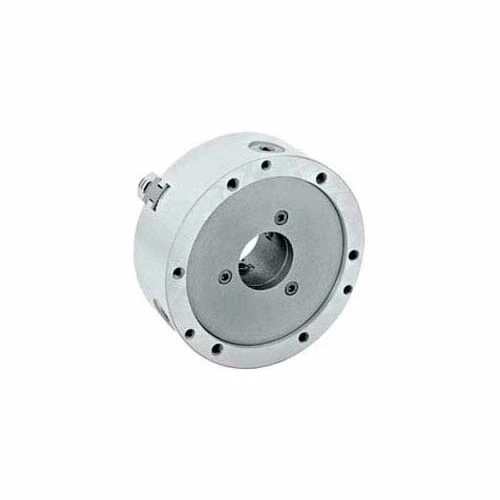

4-Jaw (Solid) Scroll Chuck, 5″
- High quality Cast Iron body
- 1 set hard solid ID jaws and 1 set hard solid OD jaws
- Plain back
| Dimension H1 | 0.787 in |
|---|---|
| Adapter Mounting Bolts L | 0.98 |
| Number of Jaws | 4 |
| Adapter Mounting Bolts Thread M | M8 x 1.25 |
| Country of Origin | Import |
| Style | Plain Back |
| Clamping Range D3 (Min-Max) | 3.15 – 4.92 |
| Clamping Range-D2 (Min-Max) | 1.54 – 3.27 |
| Type | Self-Centering |
| Number of Adapter Mounting Bolts | 3 |
| Brand | Bison |
| Manufacturers Part Number | 7-845-0500 |
| Material | Semi-Steel |
| Clamping Range-D5 (Min-Max) | 2.83 – 4.53 |
| Weight | 11 lbs |
| Clamping Range-D4 (Min-Max) | 1.34 – 2.91 |
| Clamping Range-D1 (Min-Max) | .118 – 1.97 |
| Number of Pieces | 1 |
| Max Speed | 3200 rpm |
| Chuck Body Material | Semi-Steel |
| Hole Diameter D | 1.2598" |
| Dimension H | 2.205" |
| Dimension C | 0.1575 in |
| Chuck Diameter D | 5" |
| Dimension F | 4.252" |
| Dimension E | 3.7402" |
| Diameter | 5 in |
| Description | Lathe Chuck |
