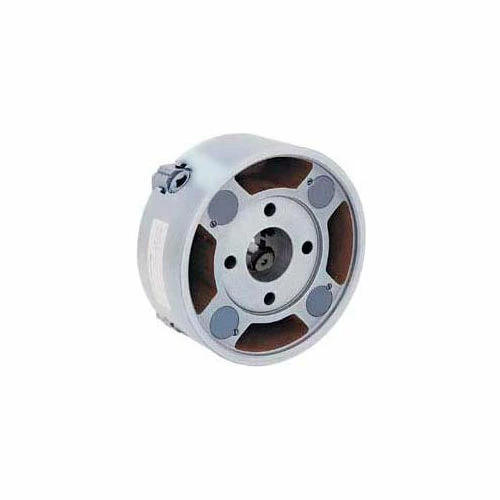

4-Jaw (Solid) Independent Chuck, 3″
- High quality Forged Steel body
- 1 set hard jaws
- Plain back
| D2 Max | 3.346" |
|---|---|
| Number of Pieces | 1 |
| Chuck Mounting Bolt Thread | 1/4-20 |
| Description | Lathe Chuck |
| Number of Jaws | 4 |
| Country of Origin | Import |
| Style | Plain Back |
| Chuck Mounting Bolts L | 1-1/4" |
| Chuck Jaws | Solid |
| Type | Independent |
| Brand | Bison |
| Number of Chuck Mounting Bolts | 4 |
| Manufacturers Part Number | 7-850-0300 |
| Material | Steel |
| Max Speed | 4000 rpm |
| Dimension H1 | 0.6693 in |
| Chuck Body Material | Steel |
| D3 Chuck Thru Hole | 0.984" |
| Hole Diameter D | 0.9843" |
| Dimension H | 1.5748" |
| Dimension C | 0.1969 in |
| Chuck Diameter D | 3-1/2" |
| Dimension F | 2.8346" |
| Dimension E | 2.4409" |
| Diameter | 3-1/2 in |
| Weight Capacity | 33 lbs |
| D1 Min | 0.118" |
| Max Hole Enlargement D1 | 0.9843" |
| Weight | 3.4 lbs |
| Clamping Range | 33 lbs |
