Original price was: $562.00.$98.99Current price is: $98.99.
- Quality and Affordability Combined
- Experience the difference quality makes.
- Buy Quality, Live Better
- Have the best deals
- High quality Cast Iron body
- 1 set hard solid ID jaws and 1 set hard solid OD jaws
- Plain back mount (D” 6350)
| Dimension H1 | 1.26 in |
|---|---|
| Clamping Range-D5 (Min-Max) | 3.70 – 6.06 |
| Number of Jaws | 3 |
| Adapter Mounting Bolts Thread M | M10x1.5 |
| Country of Origin | Import |
| Style | Plain Back |
| Clamping Range D3 (Min-Max) | 3.86 – 6.30 |
| Clamping Range-D2 (Min-Max) | 1.97 – 4.21 |
| Type | Self-Centering |
| Number of Adapter Mounting Bolts | 3 |
| Brand | Bison |
| Manufacturers Part Number | 7-810-0600 |
| Material | Semi-Steel |
| Adapter Mounting Bolts L | 0.98 |
| Clamping Range-D4 (Min-Max) | 1.65 – 3.94 |
| Weight | 22 lbs |
| Clamping Range-D1 (Min-Max) | .118 – 2.52 |
| Number of Pieces | 1 |
| Max Speed | 3000 rpm |
| Chuck Body Material | Semi-Steel |
| Hole Diameter D | 1.6535" |
| Dimension H | 2.539" |
| Dimension C | 0.1575 in |
| Chuck Diameter D | 6" |
| Dimension F | 5.5118" |
| Dimension E | 4.9213" |
| Max Hole Enlargement | 1.811" |
| Diameter | 6 in |

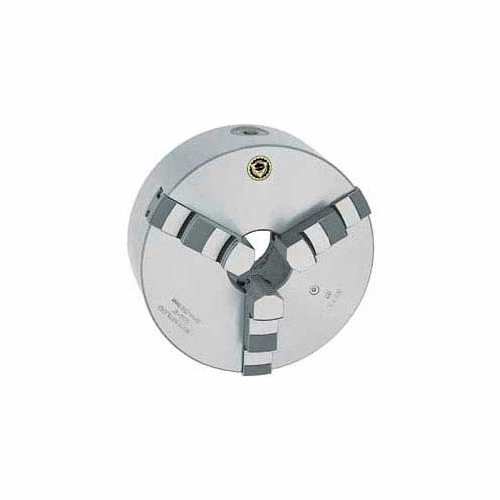

| Description | Lathe Chuck |
